Clean oven capable of high temperature treatment. N2 atomosphare treatment is also available.
-
-
Circuit board treatment
Features
- Heating up to 500°C is possible with uniform heating by hot air circulation.
- Special HEPA filter which corresponds to high temperature ensures cleanlinesslevel of class 100.
- Dry air and N2gas can be purged, meeting the requirement for achieving an oxygen density of 40ppm with high confidence.
Specification
| Model | CLB-DB040404 | CLB-DB060606 | |
|---|---|---|---|
| Heating method | Forced hot air circulation (Down blow type) | ||
| Performance (Unloaded condition) | Working temperature range | 50～500℃ | |
| Clean level | Class 100 at temperature stabilized stage/Class 500 at heating stage | ||
| Temperature distribution accuracy | ±5.0℃（at500℃） | ||
| Time to reach max. temperature | Time to reach max. temperature | ||
| Construction | Inner wall | Stainless steel SUS304 #400 finishing | |
| Outer wall | Cold rolled steel plate melamine resin baked finishing | ||
| Heat Insulation material | Ceramic board Glass wool Rock wool, etc. | ||
| Heater | Fin sheath heater (SUS) | ||
| Blower motor/fan | Sirocco fan | ||
| Differential manometer | 0～500Pa | ||
| Filter | High quality heat proof HEPA filter | ||
| Controller | Temperature control method |
PID control by micro computer from program controller |
|
| Temperature setting method |
Digital setting with ▲▼key |
||
| Temperature display method | Digital display with Green LED | ||
| Timer | 1minute ~ 99hour 59minutes or 100hour ~ 999hour | ||
| Timer resolution | 1minute or 1hour steps | ||
| Other functions |
«Automatic operation» Operation start or stop corresponding to set time up «Program operation» Maximum16 segment program operation |
||
| Heater control circuit | SSR ON-OFF control | ||
| Safety functions | Temperature abnormality, excess temperature, heater abnormal heat up, Fan abnormality, Earth leakage breaker, Emergency stop | ||

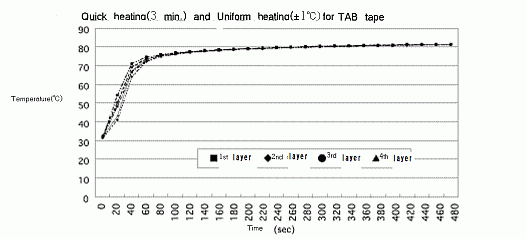

Temperature Profile Example
Dimension/Utilities
| Model | CLB-DB040404 | CLB-DB060606 |
|---|---|---|
| Standard | Width×Depth×Height | Width×Depth×Height |
| Inner dimension (mm) | 400×400×400 | 600×600×600 |
| Outer dimension (mm) | 760×1425×1650 | 910×1450×2145 |
| Inner volume (liter) | 64 | 216 |
| Power source (200V) / electric current (A) | 3 phase / 12 KVA | 3 phase / 22 KVA |
| Heater (kw) | 9.0 | 18.0 |
| Weight (approx. kg) | 400 | 700 |
