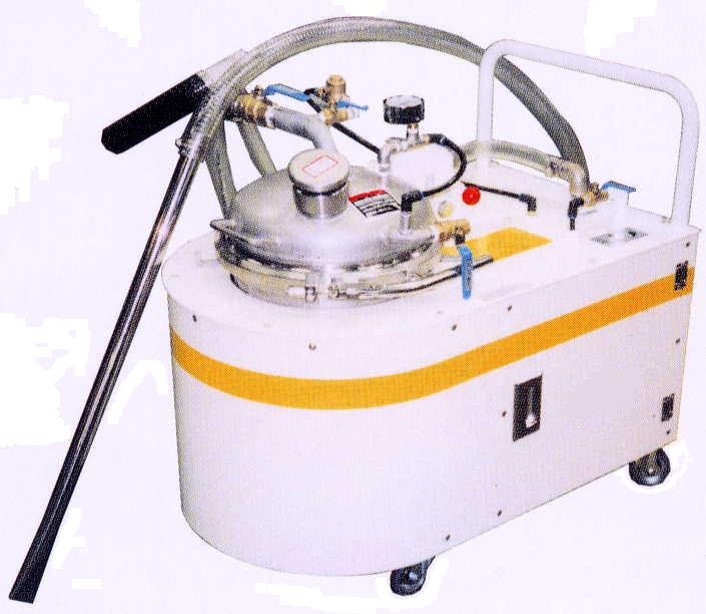

A fluid cleaner easily used by anyone anywhere !
Features
Cleaning possible without draining fluid
Since fluid dose not need to be drained from the tank sludge can be cllected as easily as using a vacuum cleaner.
Compact design with one touch connection
Power source is only air so it is highly reliable and can be used in many locations in your facility.
Includes fluid removal function
Fluid can be removed with pressurized air so sludge and solid particulates can be handled without getting hands dirty.
Great financial benefits
The only consumable part is the reusable filter bags. In cases where clogging is rapid or fluid removal conditions are poor it can be used effectively together with diatomite.
Application
- Coolant filtration (water-soluble and oil based) for processes including cutting, grinding and cleaning of steel/aluminum/resin/etc.
- Removing sludge from phosphate chemical film treatment fluid.
- Removing impurities from various fluid.

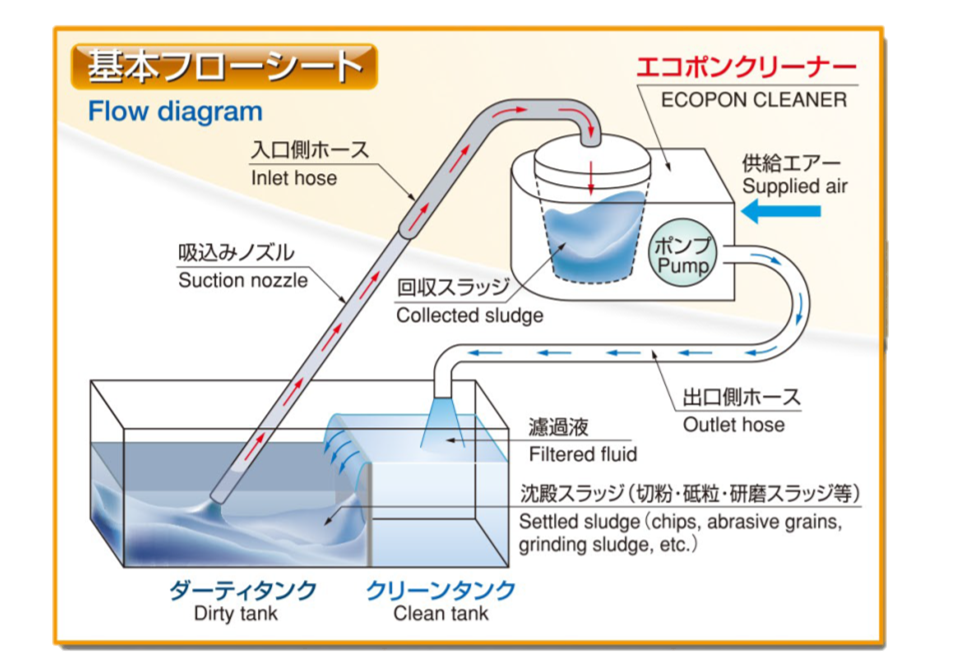

Basic flow diagram

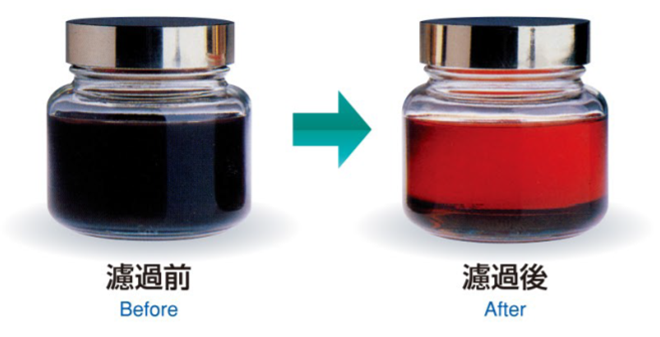

Before and after filtration

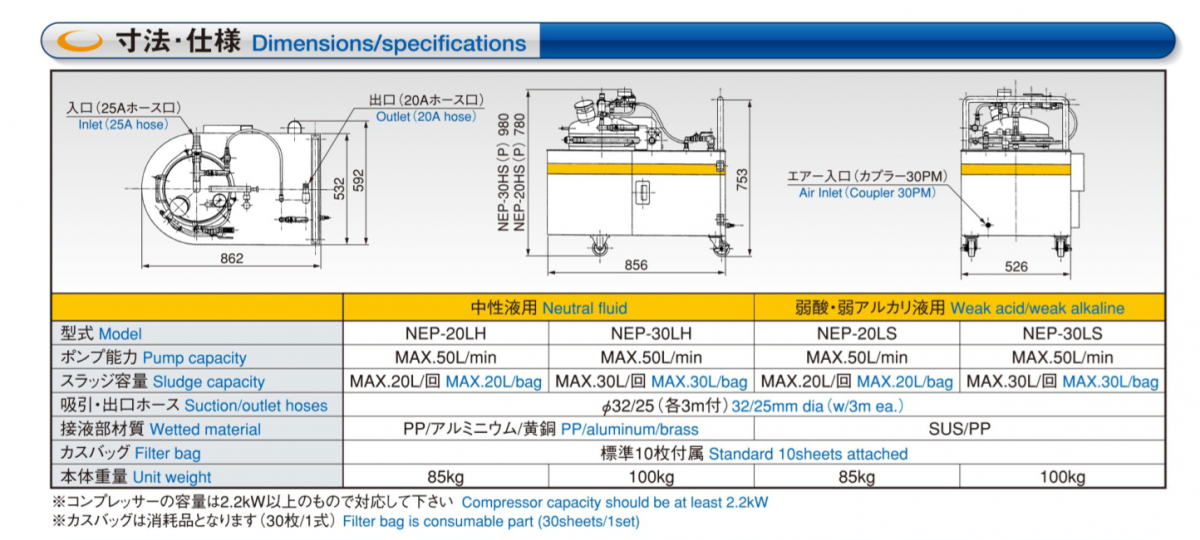

Dimensions/specifications

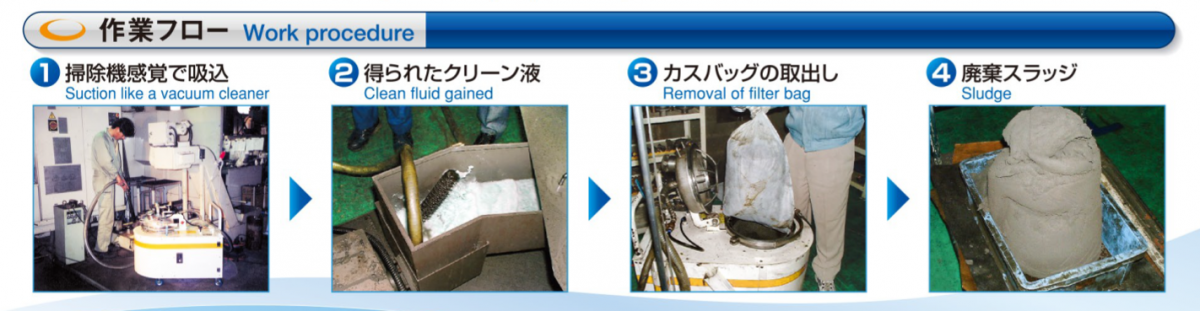

Work procedure

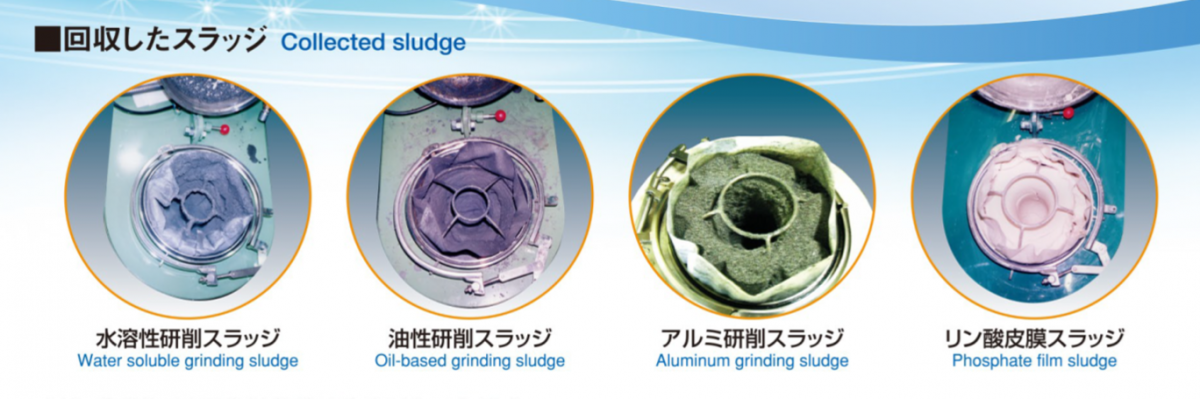

Collected sludge
